Microwave Absorbing Material
Published Date:2020-05-09 10:21:07 Hits:
Characteristics of Microwave Absorbing Powder Products

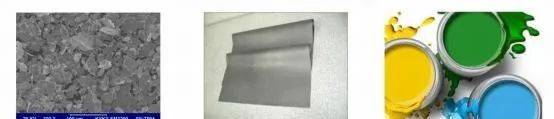

Made by special powder metallurgy and chemical surface coating processes on iron-based raw materials or micrometer sized alloy powders, it has the characteristics of low dielectric, high magnetic loss, and good impedance matching. It is suitable for electromagnetic shielding and absorption materials in the range of 0.5GHZ-18GHZ, such as coating, patch, casting, and absorbing putty.
Properties:
Low frequency (0.5GHZ-4GHz) microwave absorbing powder
Grade |
Performance characteristics |
Application |
LH-TSC |
0.5-2GHz、Antirust |
Shielding Cans for mobile phone |
LH-TSA |
1-4GHz、Antirust |
Mobile phone shielding, anti-electromagnetic interference |
LH-TSAC |
1-8GHz、Antirust |
Anti-electromagnetic interference, antenna stealth |
Alloy material absorbing typical parameter
Frequency |
ε’ |
ε” |
μ’ |
μ” |
2G |
≤35 |
≤5 |
≥3.0 |
≥2.0 |
8G |
≤30 |
≤3 |
≥0.5 |
≥1.8 |
High frequency (8GHZ-18GHz) microwave absorbing powder
Grade |
Performance characteristics |
Effective |
LH-CIP01 |
8-12GHz |
RL<-10dB |
LH-CIP02 |
12-18GHz |
RL<-10dB |
LH-CIP03 |
10-18GHz |
RL<-8dB |
LH-CIP04 |
8-18GHz |
RL<-8dB |
LH-CIP03 Iron-based absorbing typical parameter
Frequency |
ε’ |
ε” |
μ’ |
μ” |
2G |
≤25 |
≤5 |
≥5.0 |
≥2.5 |
8G |
≤22 |
≤3 |
≥1.8 |
≥2.4 |
LH-CIP04 Iron-based absorbing typical parameter
Frequency |
ε’ |
ε” |
μ’ |
μ” |
2G |
≤21 |
≤5 |
≥4.9 |
≥2.0 |
8G |
≤20 |
≤3 |
≥2.0 |
≥2.4 |
